Broadside 180º Side Awning Pro

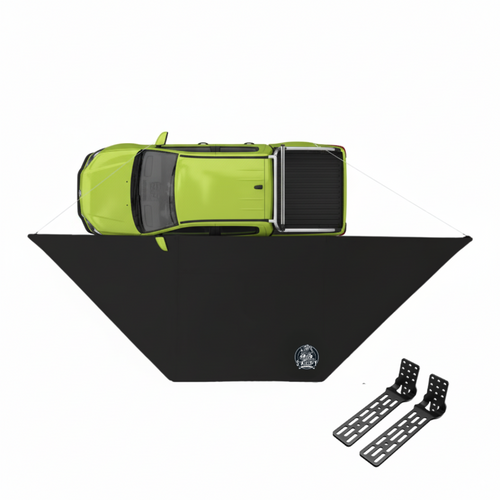

180º Vehicle Coverage

The wraparound 180º design provides approximately 8m² of coverage along the side and rear of your vehicle, creating a generous sheltered area without the bulk of a full 270º awning.

Freestanding Design

The reinforced internal frame allows the Broadside to remain freestanding during suitable conditions, making quick stops and short setups simple.

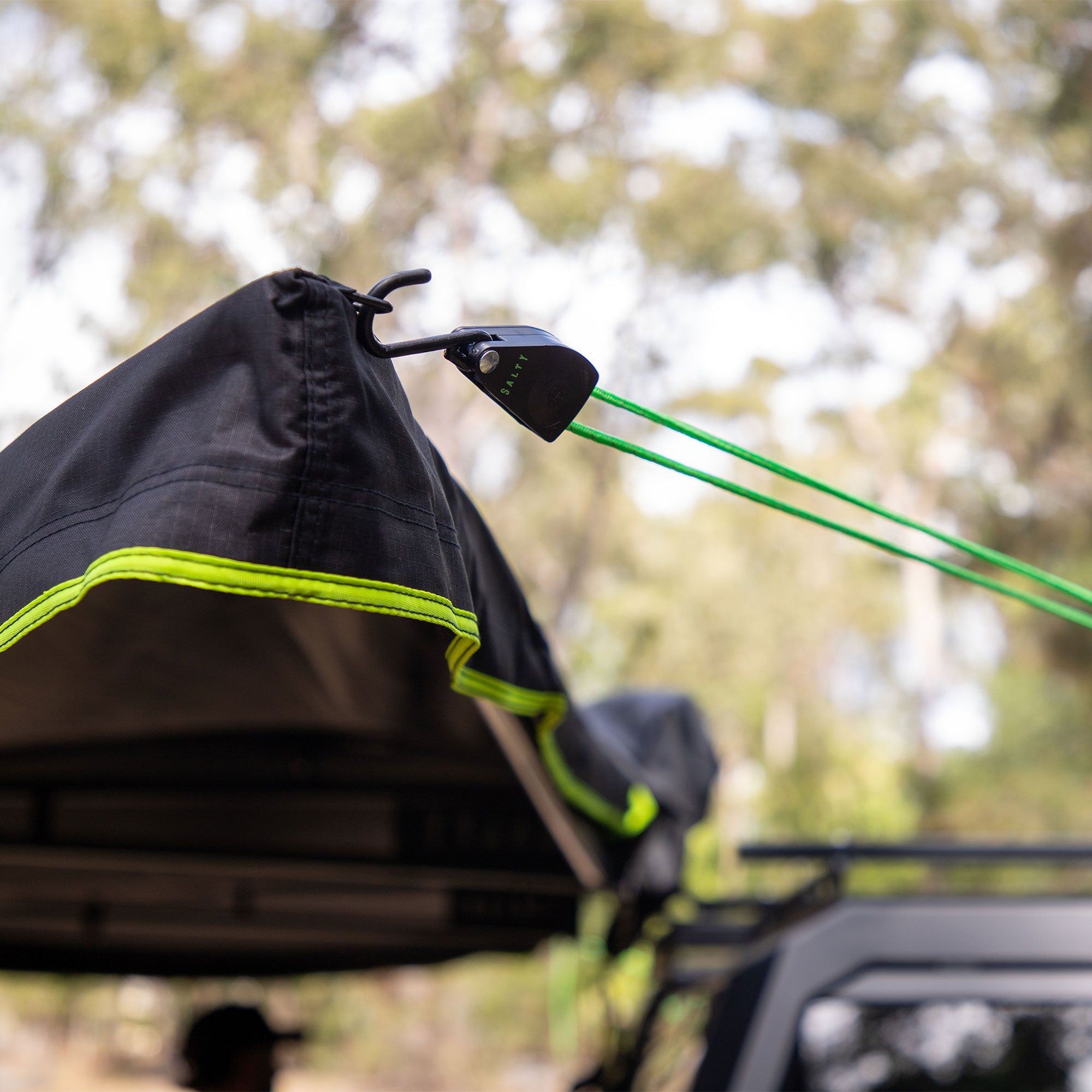

Two repositionable twist-lock legs, tensioning ratchet ropes, guy ropes and pegs are included whenever additional support is required.

Heavy-Duty Waterproof Canvas

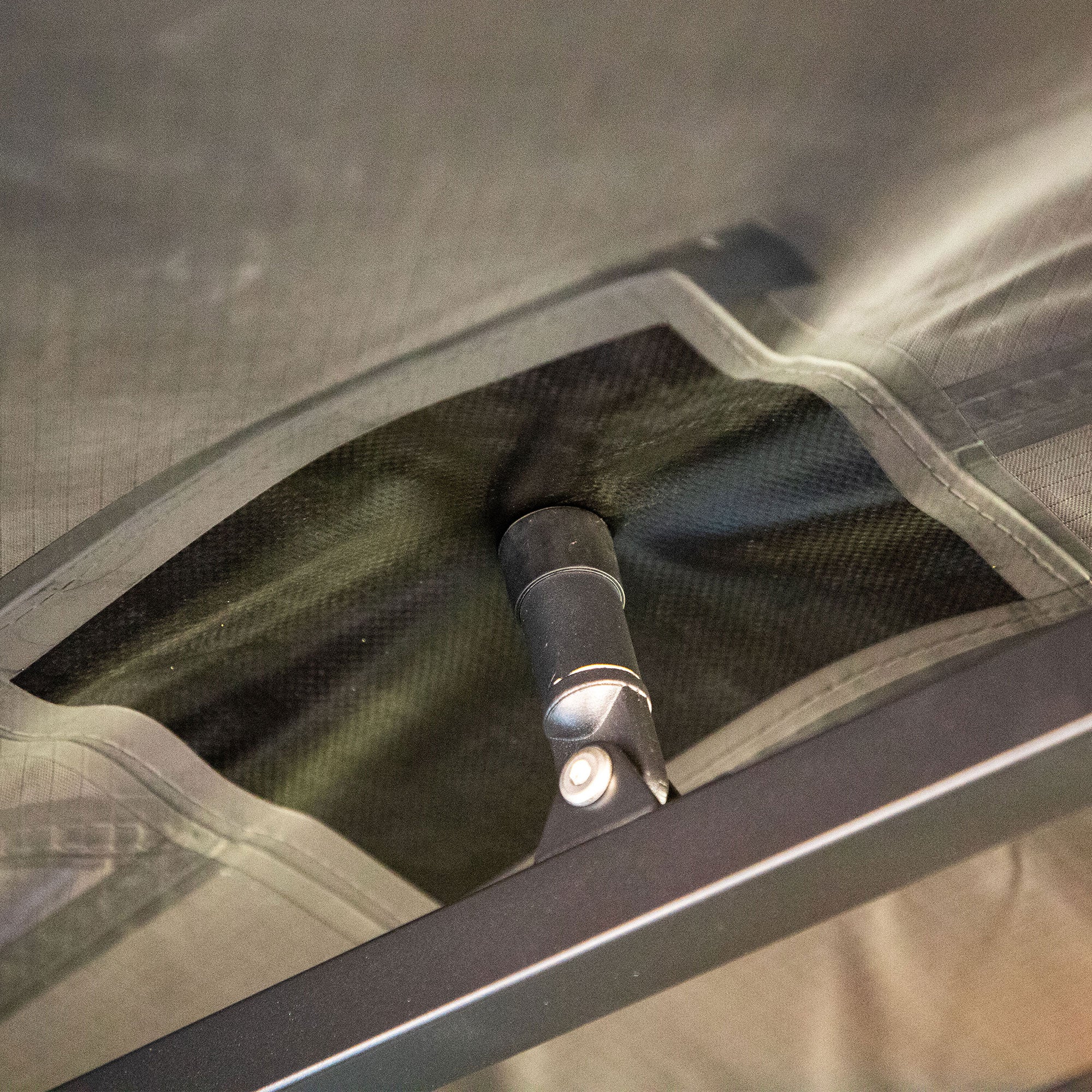

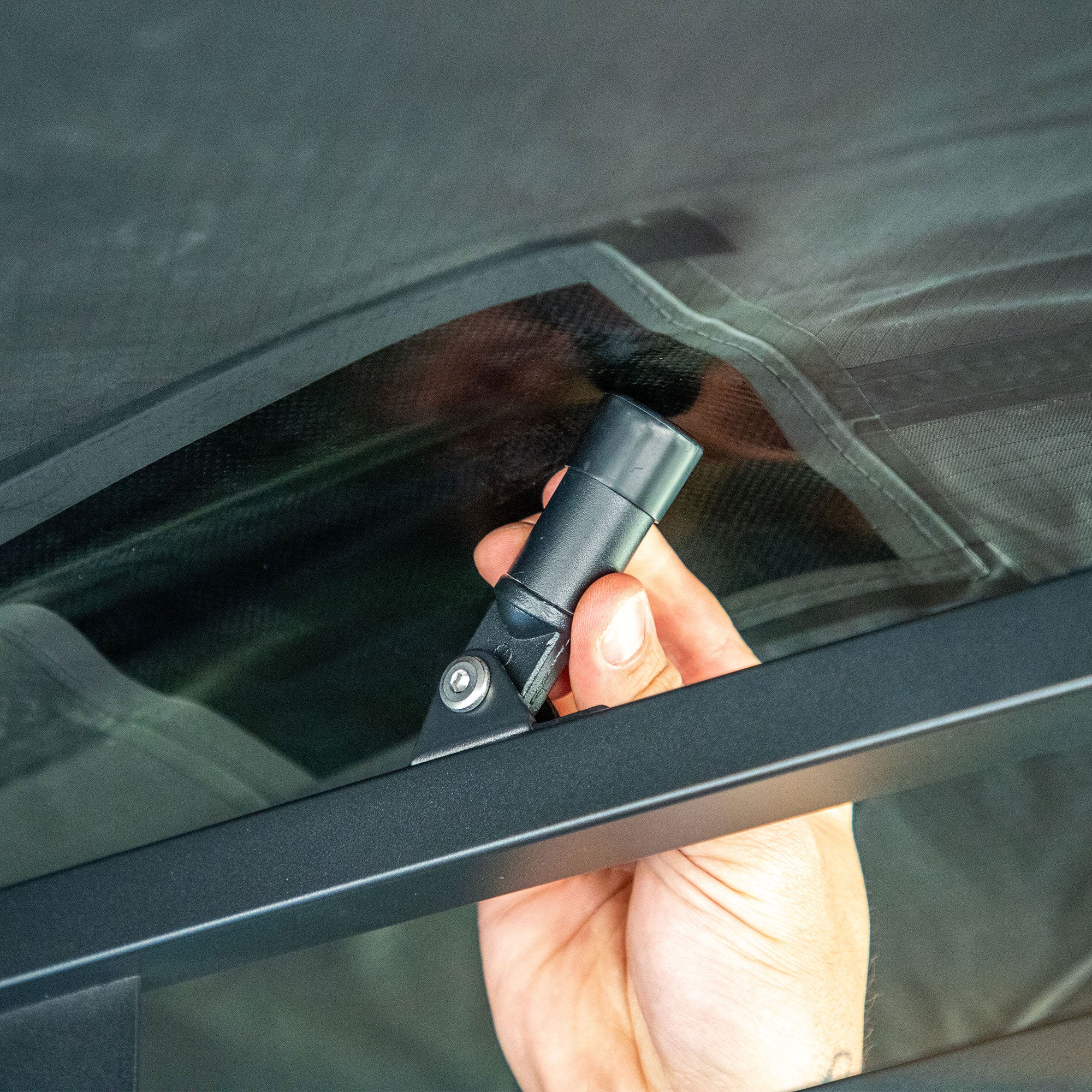

The canopy is constructed from 320GSM waterproof black canvas with a UVE 95+% ultraviolet-effectiveness rating. Reinforced guards protect each awning arm around high-wear areas.

Reinforced Aluminium Frame

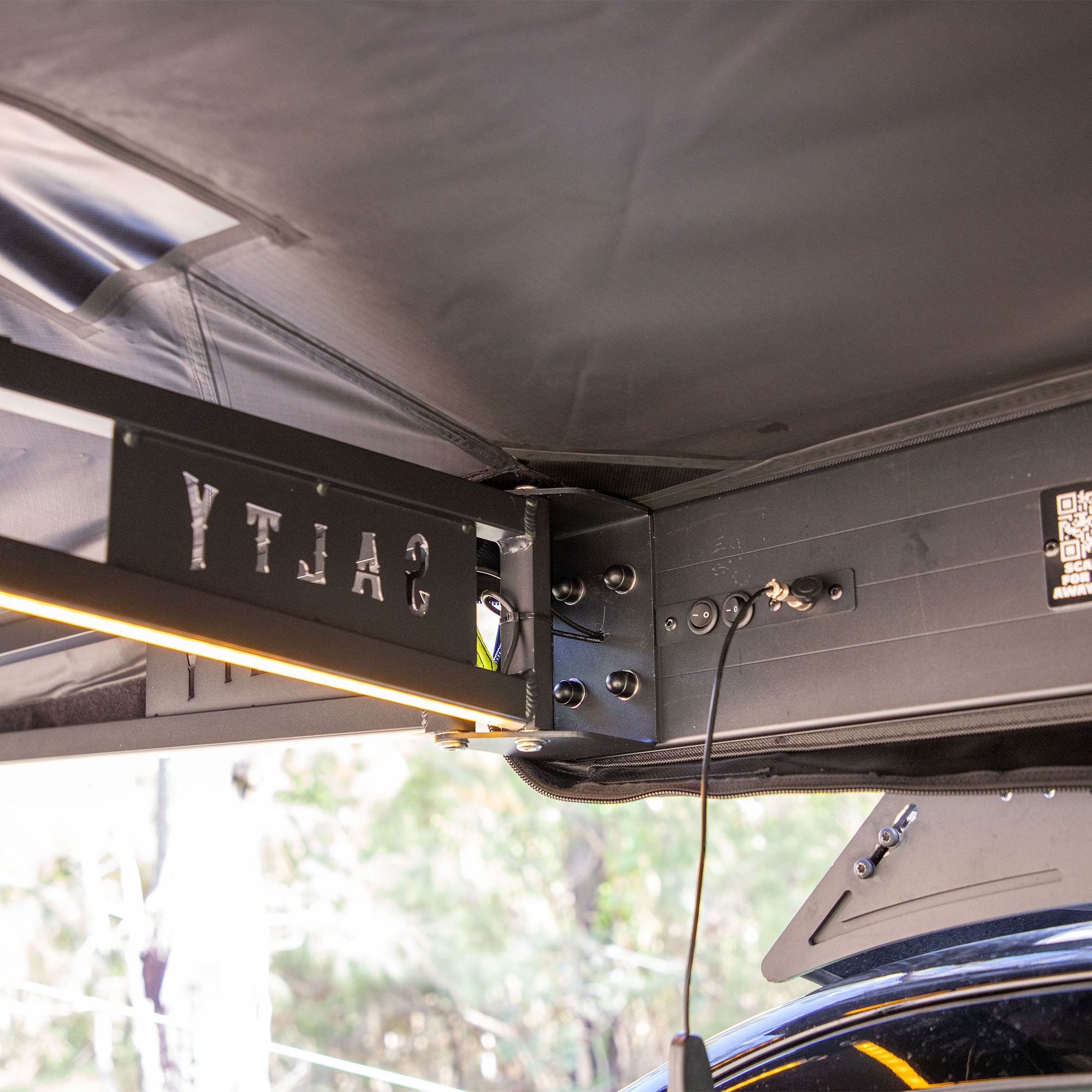

A black aluminium backing plate, reinforced internal frame and engineered hinge system provide strength while keeping the awning compact when packed against your vehicle.

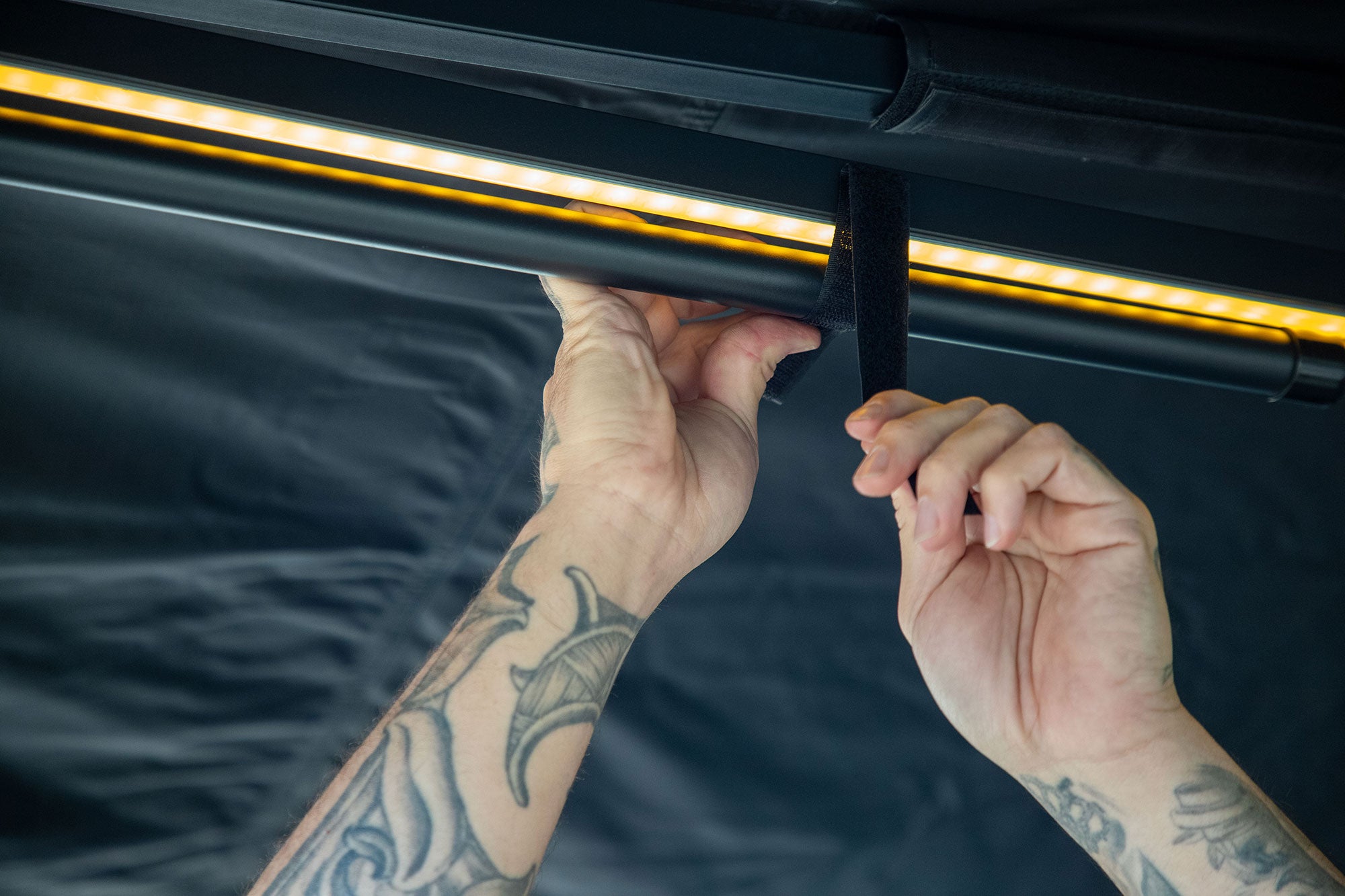

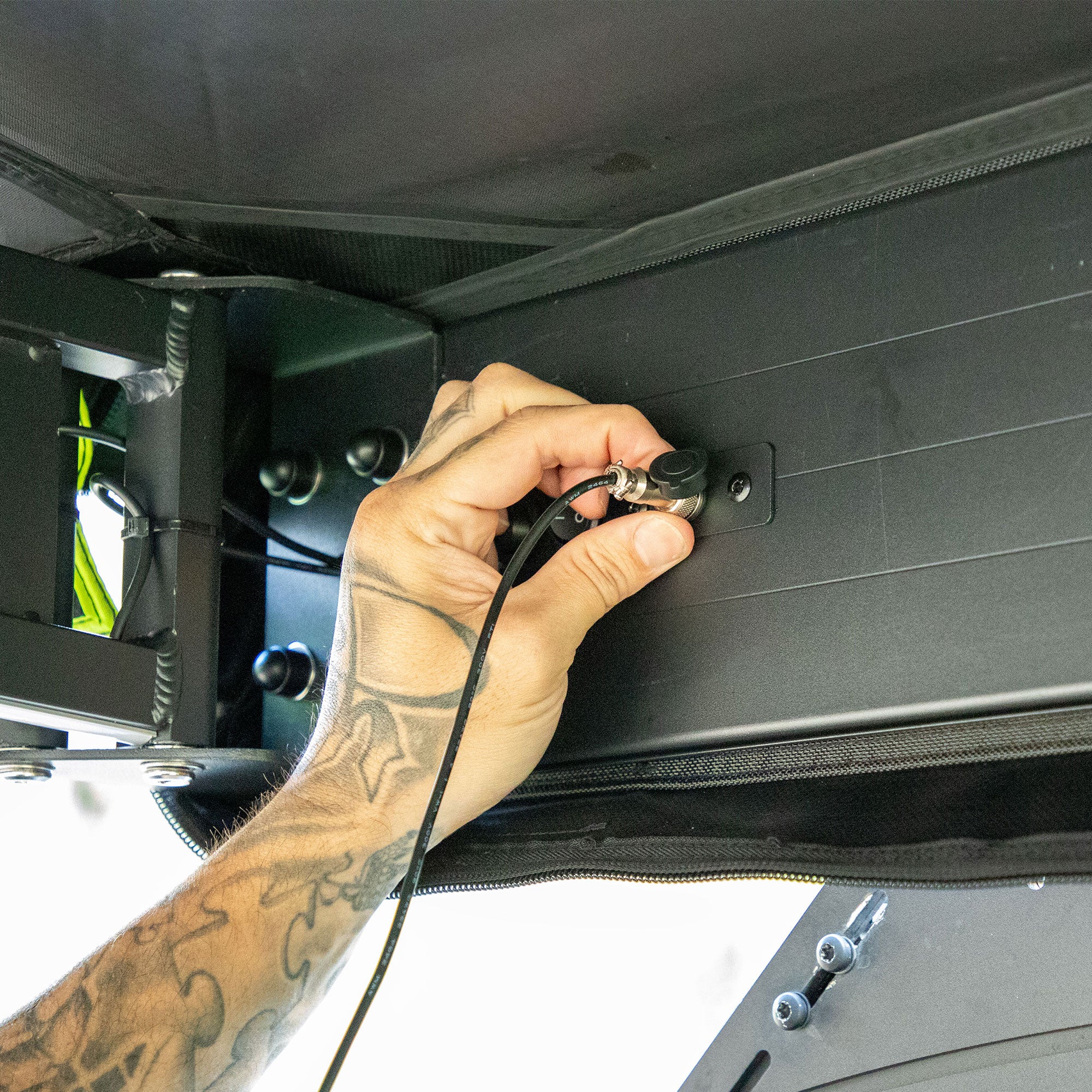

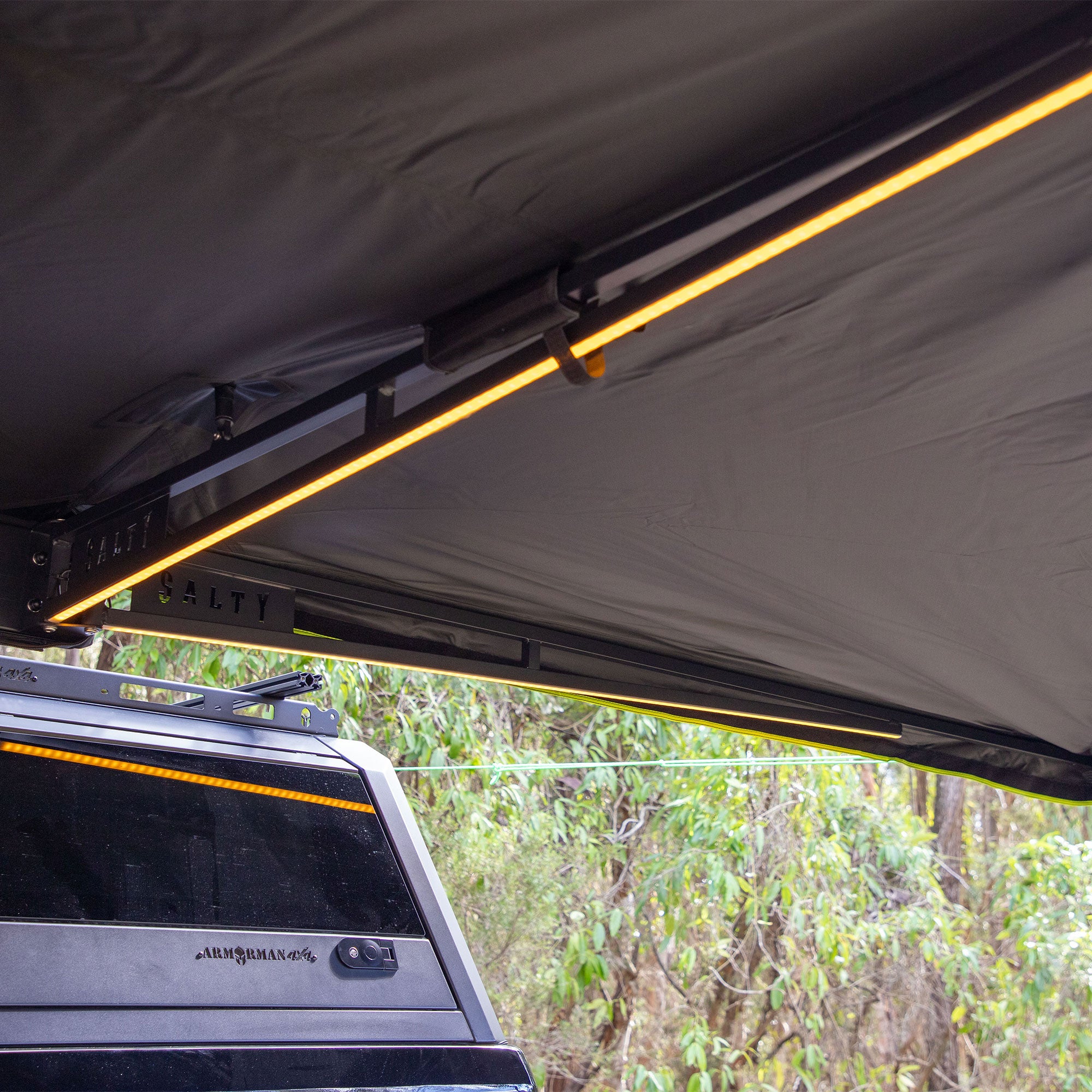

Integrated RGB Lighting

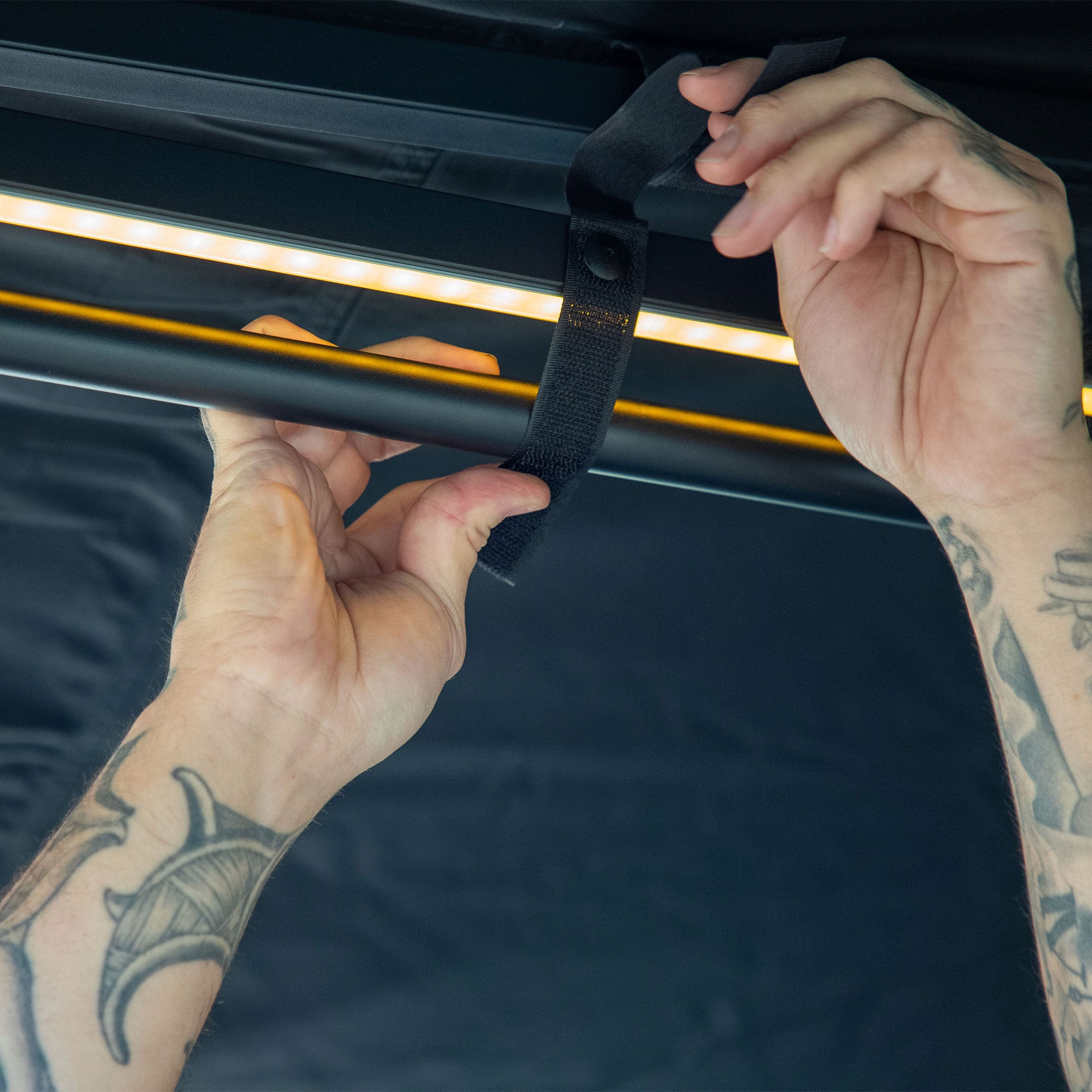

Two pre-installed 100cm RGB LED light arms provide convenient campsite lighting after dark.

Choose between dimming, strobe, pulse, sound-reactive and red-light modes using the included wireless remote and multifunction controller.

The red-light setting is designed to reduce insect attraction compared with conventional white or amber lighting.

Adjustable Support Legs

Two repositionable twist-lock legs are included and can be moved between multiple mounting points for additional support.

The Broadside can support up to four compatible legs when extra stability is required or when compatible wall kits are installed.

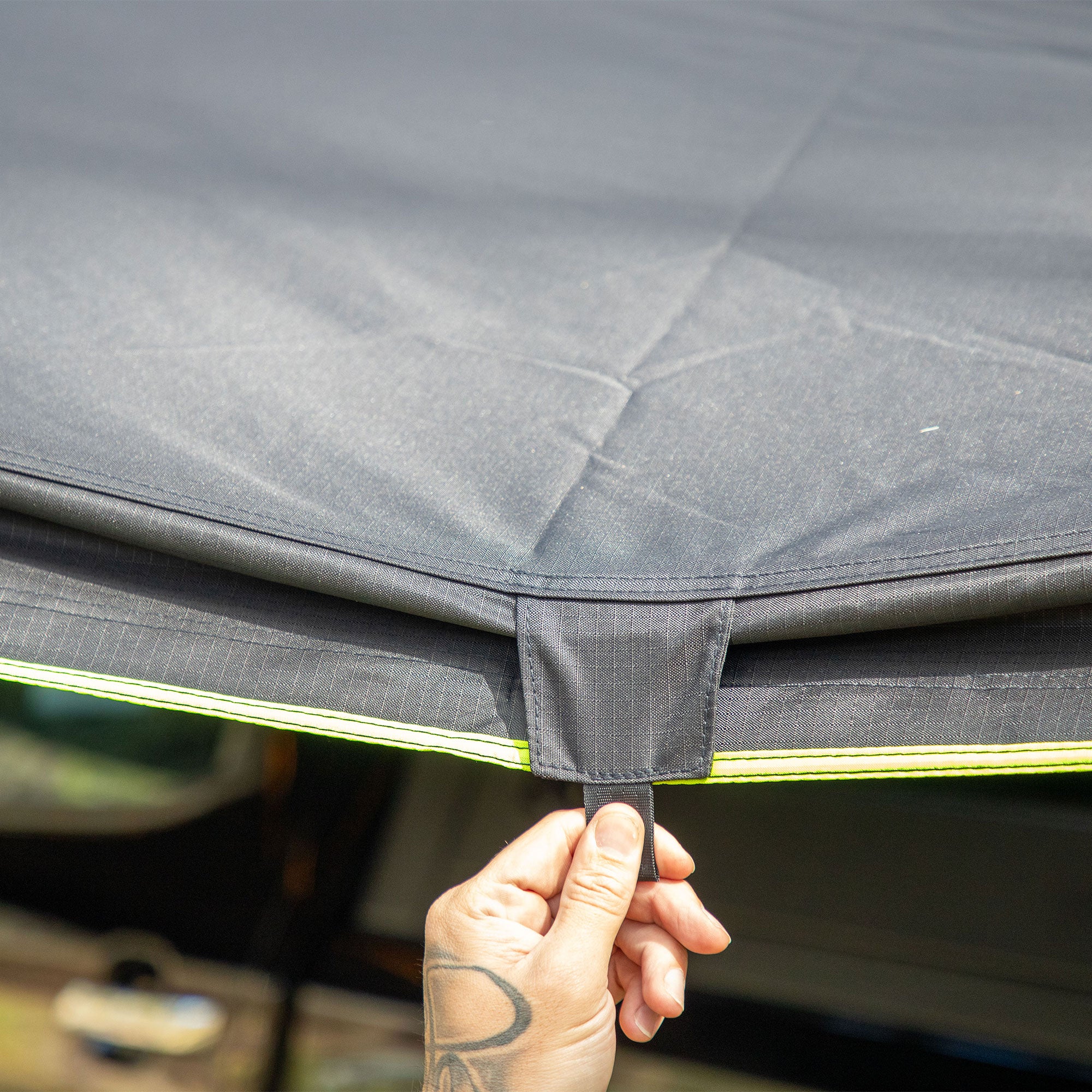

Rain-Ready Design

Integrated rain tabs and tie-down points help manage water runoff and prevent pooling during wet conditions.

Accessory Compatible

An integrated sail track supports compatible awning organisers, while the Velcro valance can accommodate compatible awning walls, full wall kits and enclosed sleepout systems.

Standout Features

• 180º wraparound vehicle coverage
• Approximately 8m² of covered space
• Compact 2m packed length
• Freestanding design
• 320GSM waterproof black canvas
• UVE 95+% ultraviolet-effectiveness rating
• Black aluminium backing plate
• Reinforced internal aluminium frame
• Engineered hinge system
• Reinforced guards on each awning arm
• Two repositionable twist-lock legs
• Integrated fittings for additional support legs
• Rain tabs with tie-down points
• Two built-in 100cm RGB LED light arms
• Red-light mode designed to reduce insect attraction
• Hardwire lighting remote and multifunction controller
• Integrated sail track for compatible accessories
• Velcro valance for compatible wall systems
• Quick-release tensioners
• 304 stainless-steel mounting hardware
• Left-hand and right-hand mounting options
• Heavy-duty PVC travel bag
• Complete mounting, tensioning and tie-down kit

Mounting Requirements

A minimum distance of 1200mm is required between the mounting brackets for correct support and freestanding functionality.

The awning must be installed using suitable load-rated brackets attached to a compatible roof rack or vehicle mounting system. Check your roof rack’s load rating and mounting requirements before installation.

Important Use Information

Although the Broadside is designed to be freestanding in suitable conditions, the included legs, tensioning ropes, guy ropes and pegs should be used whenever additional support is required.

Do not leave the awning open during strong winds, storms or severe weather. Always allow the canvas to dry completely before packing it away for extended storage.

• 1 × Broadside 180º Side Awning Pro
• 1 × 320GSM waterproof black canvas canopy
• 1 × black aluminium backing plate and reinforced internal frame
• 2 × repositionable twist-lock legs
• 2 × built-in 100cm RGB LED light arms
• 1 × Hardwired lighting remote
• 1 × multifunction RGB lighting controller
• 1 × 5m dual-split 12V plug-and-play power cable
• 2 × standard L-shaped mounting brackets
• 4 × M8 stainless-steel bolts and nuts
• 2 × tensioning ratchet ropes
• 2 × guy ropes
• 2 × ground pegs
• 1 × heavy-duty PVC awning bag
• 1 × accessory repair kit
• 1 × ratchet spanner

• Product name: Broadside 180º Side Awning Pro
• Awning style: 180º wraparound side awning
• Frame length: 2m
• Coverage area: Approximately 8m²
• Weight on vehicle: Approximately 20kg
• Packed dimensions: 200cm × 20cm × 20cm
• Canvas: 320GSM waterproof black canvas
• Canvas rating: UVE 95+% ultraviolet effectiveness
• Frame: Black aluminium backing plate with reinforced internal frame
• Hinge system: Engineered reinforced hinge design
• Legs: Two repositionable twist-lock legs
• Maximum supported legs: Four compatible legs
• Lighting: Two integrated multifunction RGB LED light arms
• Lighting modes: Dimming, strobe, pulse, sound-reactive and red-light modes
• Power connection: 12V cigarette-socket plug
• Mounting hardware: 304 stainless steel
• Mounting options: Left-hand or right-hand configuration
• Minimum bracket spacing: 1200mm
• Accessory mounting: Integrated sail track and Velcro valance
• Storage: Heavy-duty PVC awning bag
